Details

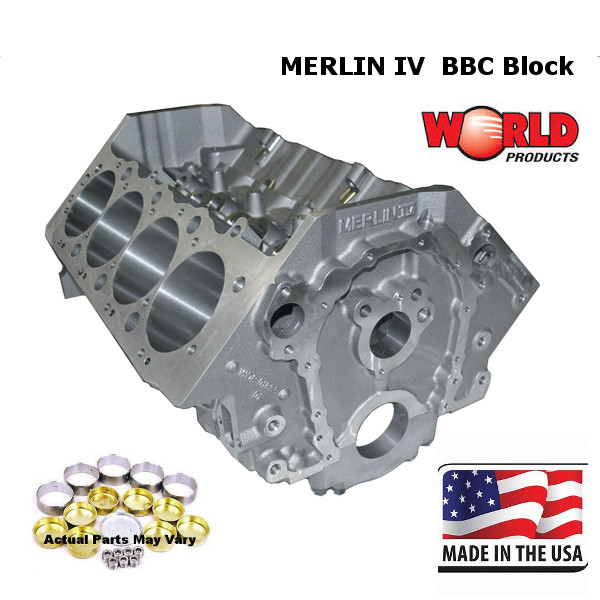

The +.050 deck height allows .050 in more ring lands on the piston, great for big Nitrous, Supercharged applications. This Merlin IV block is machined for 55mm babbit cam bearings and .904 lifters for improved valvetrain control. World Products has made improvements to virtually every area of the new Merlin IV block with the goal of producing the most technologically advanced and best performing iron BBC block available today! New features include thicker main webs for increased strength and thicker cylinder walls which are nominally .310" @ 4.600" bore, .290 @ 4.625 bore. INCLUDES BLOCK KIT
- Available in 4.595 bores ready to hone to 4.600
- 4.595 bore part# 091107-55-K
- Increased strength cast iron material
- Thicker main Webs including front bulkhead
- Increased volume priority oil main oiling system
- 9.800 deck blocks are clearanced for 4.375 stroke
- Expanded water jackets for better cooling
- Siamese bores
- 2pc rear seal
- 4-bolt mains on all 5, center 3 splayed
- 1/2 in ARP main bolts
- Uses standard BBC oil filter
- Block is set up for stock style internal wet sump pump but can be converted for dry sump
- Standard cam location
- 55mm cam bore with .904 lifter bores
- Enough material to machine for 60mm babbit cam bearings
- Added material around lifter bores for up to .937 keyed lifter bushings
- Also Available in 9.500, 9.800, and 10.200 deck - SEE LISTINGS
- Also Availble with Billet main caps with ARP Main Studs
Additional Information
| Manufacturer | World Products |
|---|
