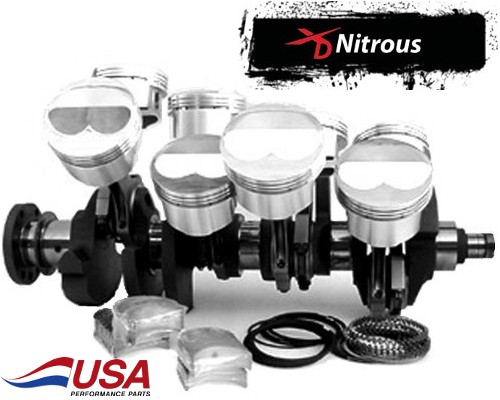

Lunati Rotating Assem-NO2-Balanced-615 cid, Forged Crank, XD H-beam rod, CP XD NO2 Piston 13.4

These Lunati Balanced XD NO2 Rotating Assemblies offer race proven quality components at a reduced package price. Lunati Forged 4340 crankshafts, XD Xtreme Duty H-beam rods with ARP2000 rod bolts, CP XD Xtreme Duty NO2 pistons and file fit rings are standard in these popular combinations. Capable of 600+ HP NO2

615 cubic inch with 4.600 bore

For 10.200 tall deck block

4.625 stroke x 4.600 bore

Lunati Voodoo 4.625 stroke Forged 4340 Steel Crankshaft with center counterweights

XD Xtreme Duty 6.700 H-beam rods with ARP2000 rod bolts - 1800 HP by Molnar Technologies

XD rods have thicker beam cross section and thicker H-fins for increased strength

CP-Carrillo custom XD Xtreme Duty NO2 pistons 32cc, gas ported, thick crown & skirts, .200 wall

Capable of 600+ HP NO2

13.4-1w/118cc chamber

Total Seal AP steel NO2 Rings .043 x .043 x 3/16

King HP-series rod & main bearings

Precision Balanced

Other Combinations Available - Custom Assemblies our Specialty - Please Inquire

Hundreds of stroke & bore combinations available
